Database Flash Disk Performance

Introduction

There are any number of ways to address database performance from straight forward database tuning to extremely complex high performance SAN arrays, this study was carried out to determine if the Sun Storage F5100 Flash Array can deliver cost efficient performance for I/O constrained databases.

When I started this case study I naively expected it to be relatively straight forward to compare the performance of the Sun Storage F5100 Flash Array with an alternative SAN storage array. How wrong I was, whilst it was very easy to make the SAN storage the performance bottle neck, no matter how I setup my environment I could not configure a situation where the Sun Storage F5100 Flash Array became the bottle neck. This amply demonstrated the performance superiority of the F5100, but made measuring the gains a challenge. Eventually I used a variant of the TPC-H benchmark to deliver sufficient I/O for the tests.

High Performance at Commodity Pricing

In my write intensive tests I was able to achieve the following improvements

In my read intensive tests I was able to achieve the following improvements

The Sun Storage F5100 Flash Array offers significant benefits to the DB performance problems at commodity pricing, with a starting list price of just £37,300 for the smallest appliance rising to £129,800 for the full size appliance. Performance scales linearly when increasing the size of the appliance and multiple appliances can be added to the database storage grid to facilitate scale out requirements.

Better business agility and continuity

All of the performance improvements, which are noted above, were achieved without incurring any database downtime, this was done by utilising standard Oracle features allowing the Sun Storage F5100 Flash Array to become a standard component of the DBAs tuning toolkit.

In the write tests we identified the following areas of I/O contention.

One of the main benefits of the Sun Storage F5100 Flash Array is that, as an appliance there is no complex architecture required prior to use; simply attach the unit to a spare SAS port, preferably two for redundancy, and it is ready to go.

If there are no spare SAS ports, a SAS card will have to be added to the server into a PCI-X 2.0 slot; in most cases this will require a minor outage to implement.

Higher server utilisation

To measure the gains of the system the following write intensive tests were performed, as detailed below.

SonicWall

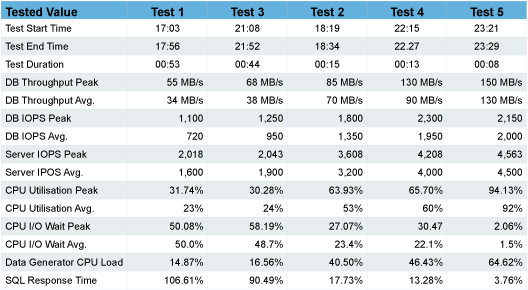

The tests are shown in order of performance gain, and you will note that the relocation of the Recovery Area realised a greater performance gain than the relocation of the REDO logs against my expectation.

The other tests I ran was to measure the gains of the system when running read intensive operations, as these tests generated very little REDO or Archive the only measurable benefits occurred when I moved the hot table onto the F5100 as shown below.

SonicWall

It is clear from these results that it is possible to realise significant performance gains by simply relocating high I/O activities onto the Sun Storage F5100 Flash Array.

Test Harness

All tests were carried out on the following hardware

The SAN was configured with three RAID 10 LUNs that were presented to the database server; all disk management on the SAN was managed by the SAN array.

The Sun Storage F5100 Flash Array presents each flash module as an individual storage device, in the case of a fully size appliance this results in eighty storage devices being presented to the server. This necessitates the need for a volume manager and we used Oracle ASM to manage all database storage.

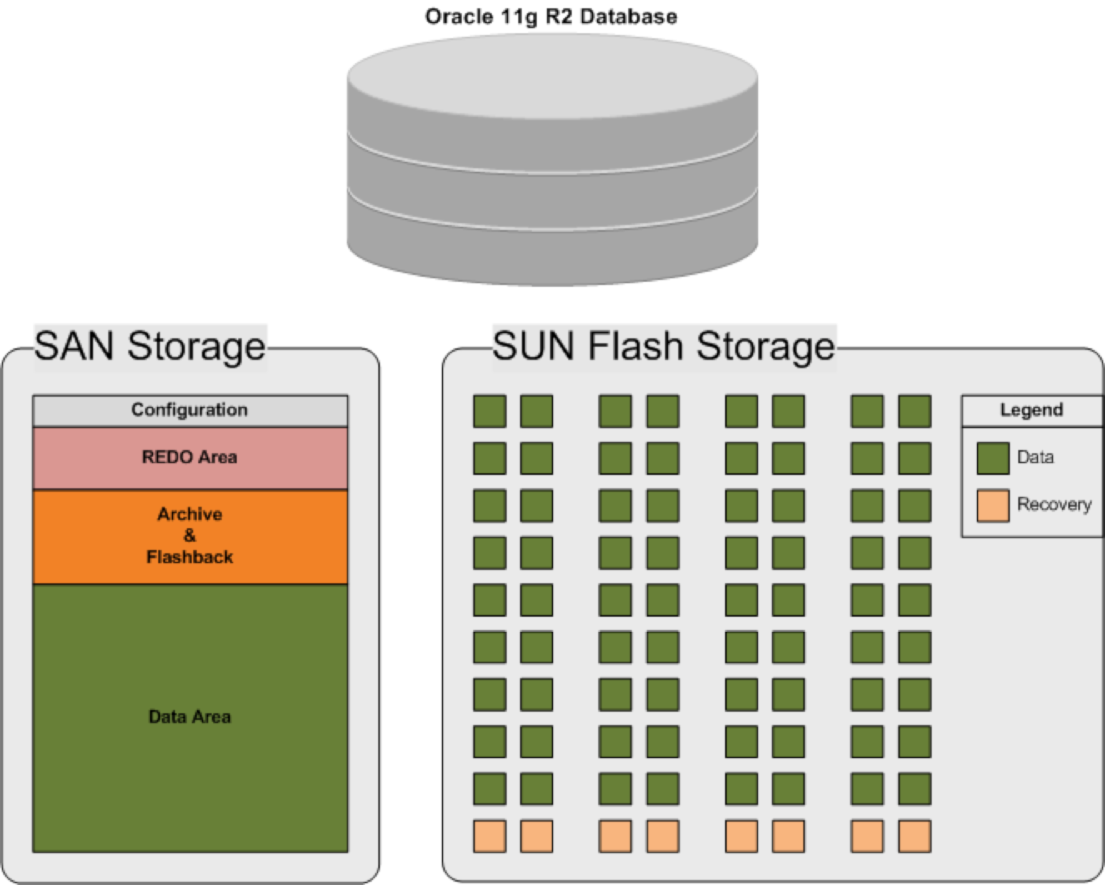

Our calculations showed that there was no performance benefit from separating the REDO from the Archive areas on the Sun Storage F5100 Flash Array and so we simply balanced the recovery area across all controllers in the appliance to maximise throughput as shown in the diagram below.

SonicWall

Test Summary

In a lot of benchmark tests, multiple tricks are used to obtain the desired results and I nearly had to resort to this trick myself as I will explain later. But the purpose of these tests was not to skew the results in favour of a desired outcome, but to represent the Sun Storage F5100 Flash Array as it could be deployed into any environment. Therefore I did not perform any database tuning or SQL tuning in any of the environments. Every test used the same start and end point against the same data set and the database was deployed with default settings throughout, in addition to this the database was shutdown and restarted between tests to ensure consistency.

Initially I planned to use a TPC-C benchmark to demonstrate the benefits of the Sun Storage F5100 Flash Array and all was going well during the tests with the SAN storage as it was relatively easy to load up the servers such that storage was the bottle neck. However when I connected Sun Storage F5100 Flash Array the CPU became the immediate bottleneck and I started resorting to tricks to force additional I/O, primarily by reducing the size of the SGA to prevent any caching from taking place. This quickly lead me to running tests against a database that was not viable and definitely not representative of those in common usage so I abandoned this approach and changed strategy to a variant of the TPC-H benchmark using the settings as shown above.

In this test harness, the X4600 M2 had a PCI-e bandwidth of 20GB/s and we used four SAS HBA cards, each of which was connected to an eight lane slot giving a total theoretical slot bandwidth of 16GB/s. Each of the HBA cards is capable of 12Gb/s giving a total theoretical bandwidth of 48Gb/s or 6GB/s. In our read intensive tests we achieved a peak throughput of 2GB/s by simply running a test out of the box against a default database and without performing any tuning or optimisation. For me this is an impressive result that shows the true potential of this appliance.
