Building the Cougar MR1

Click on the buttons to change the grid view.

CougarMR1 0

Week 1

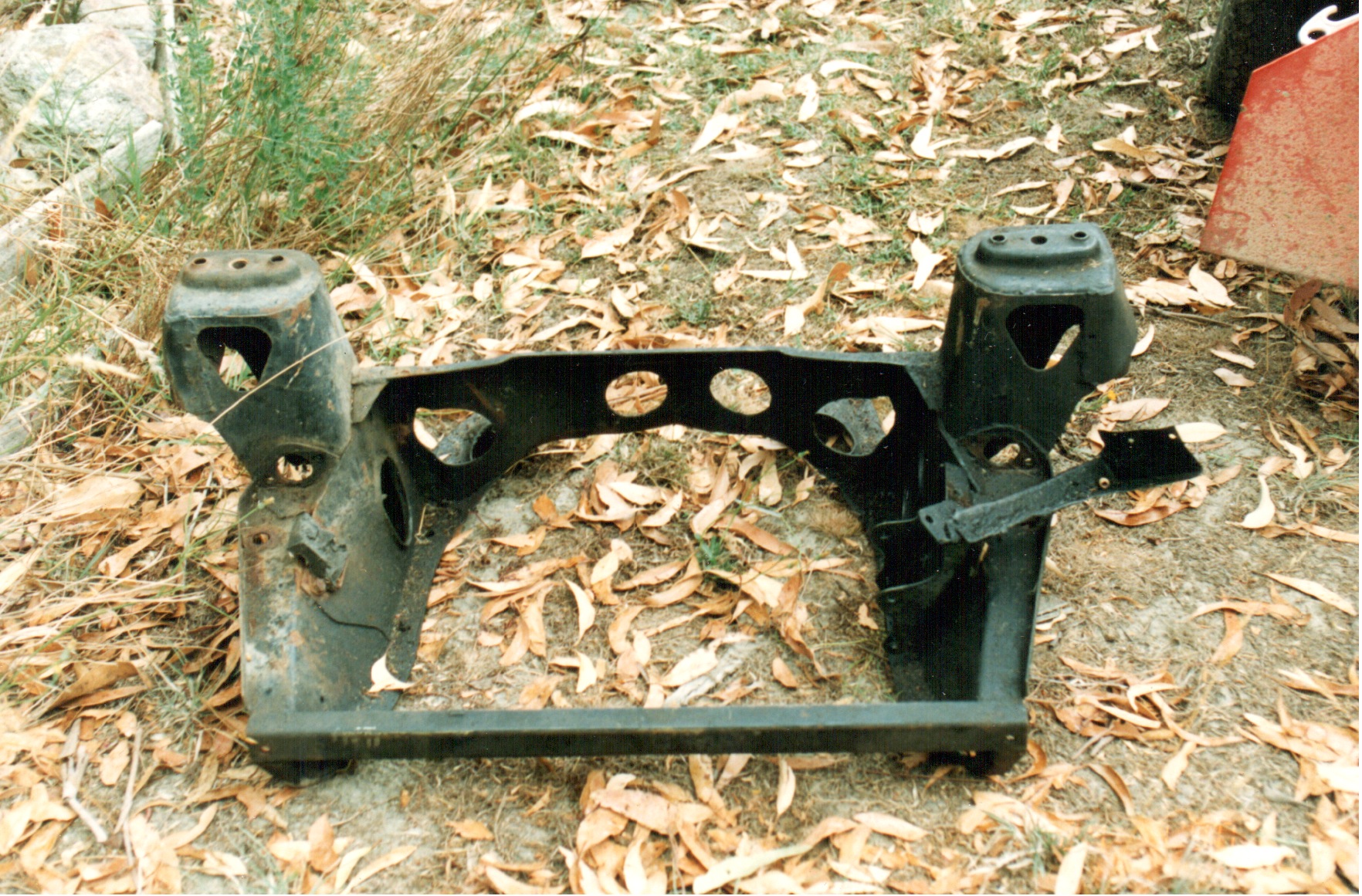

Start with a Mini Subframe

CougarMR1 1

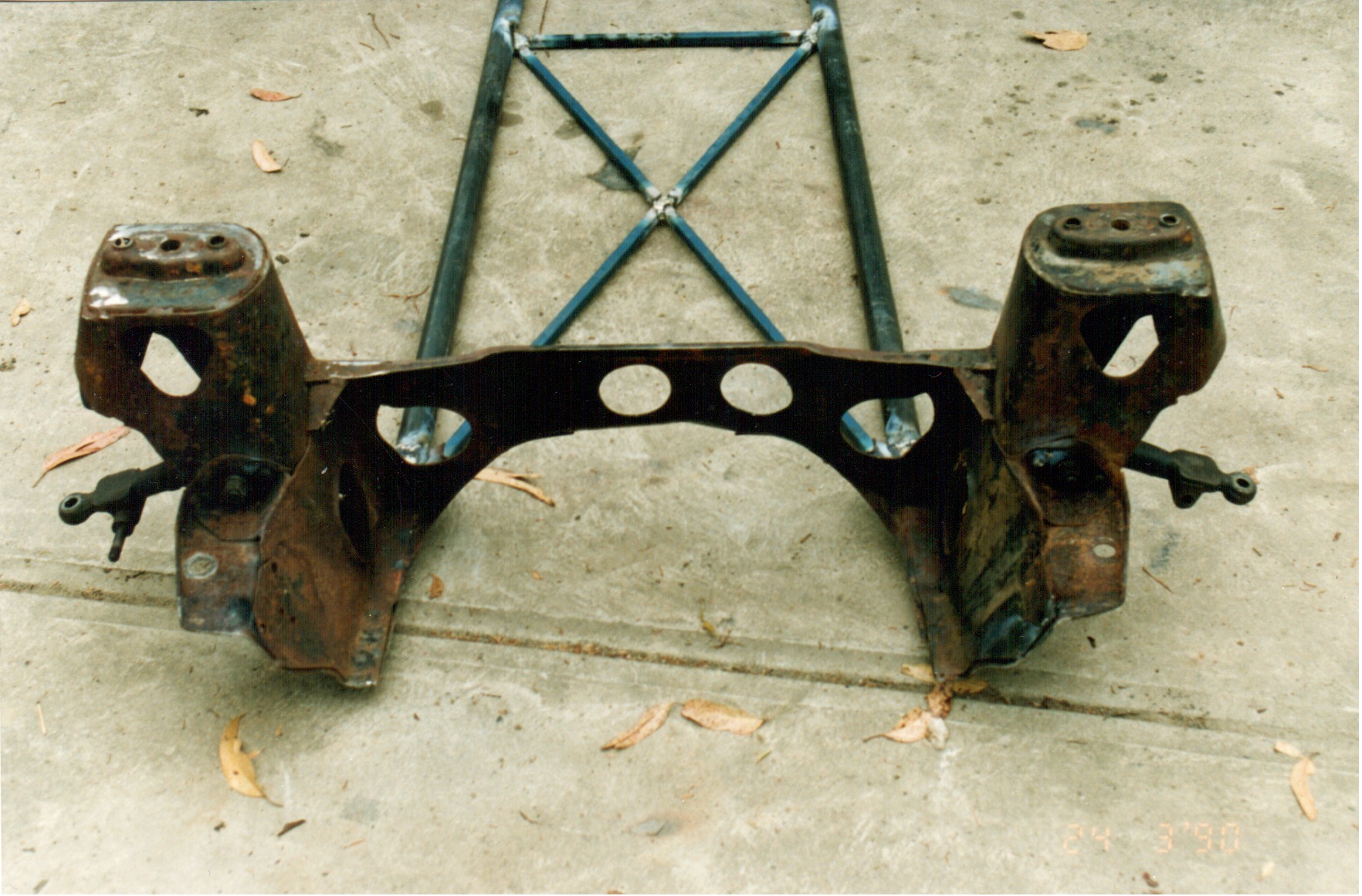

Get rid of most of the subframe, we only need the suspension mounts

CougarMR1 2

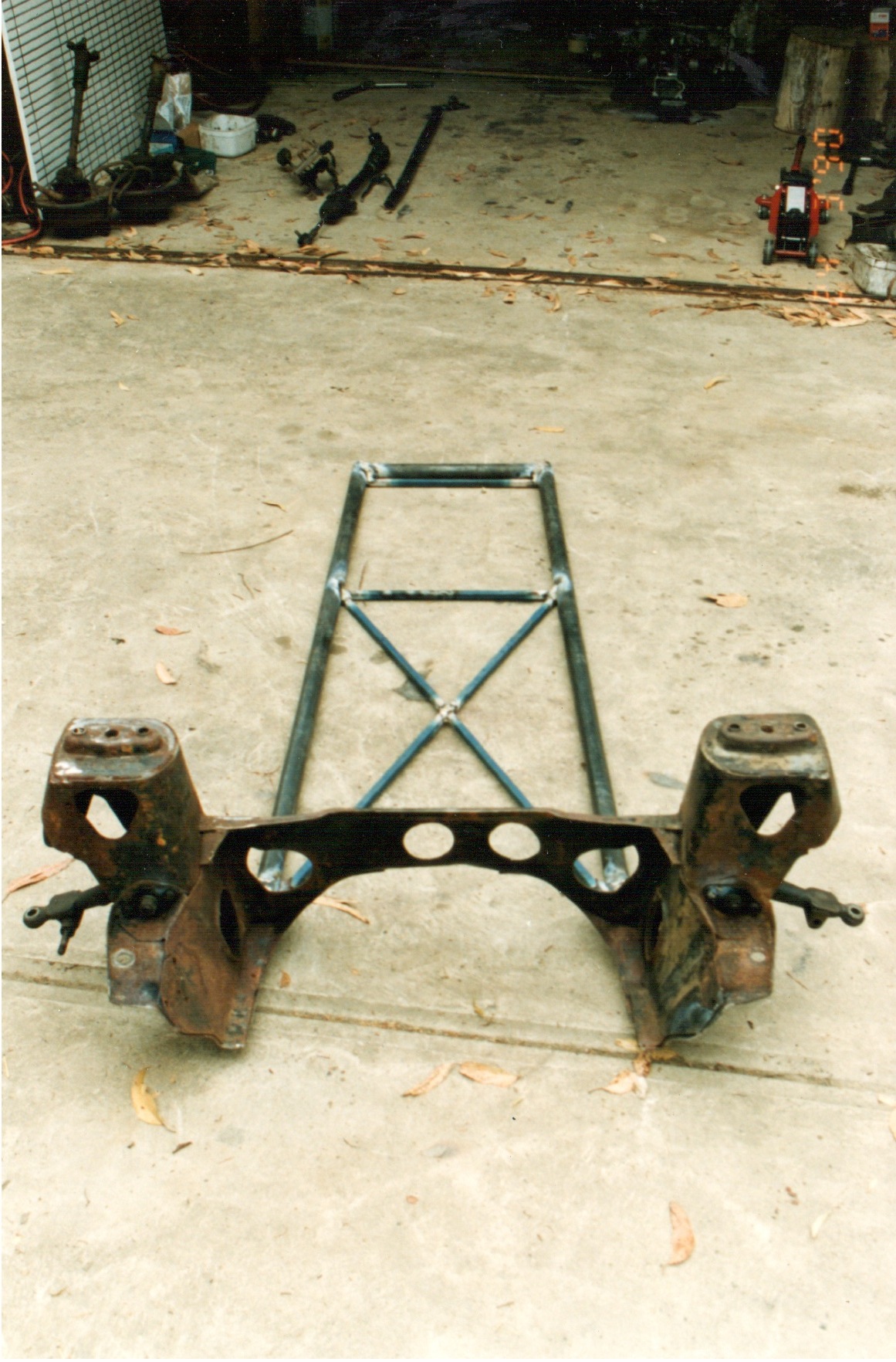

Create the floor pan

CougarMR1 3

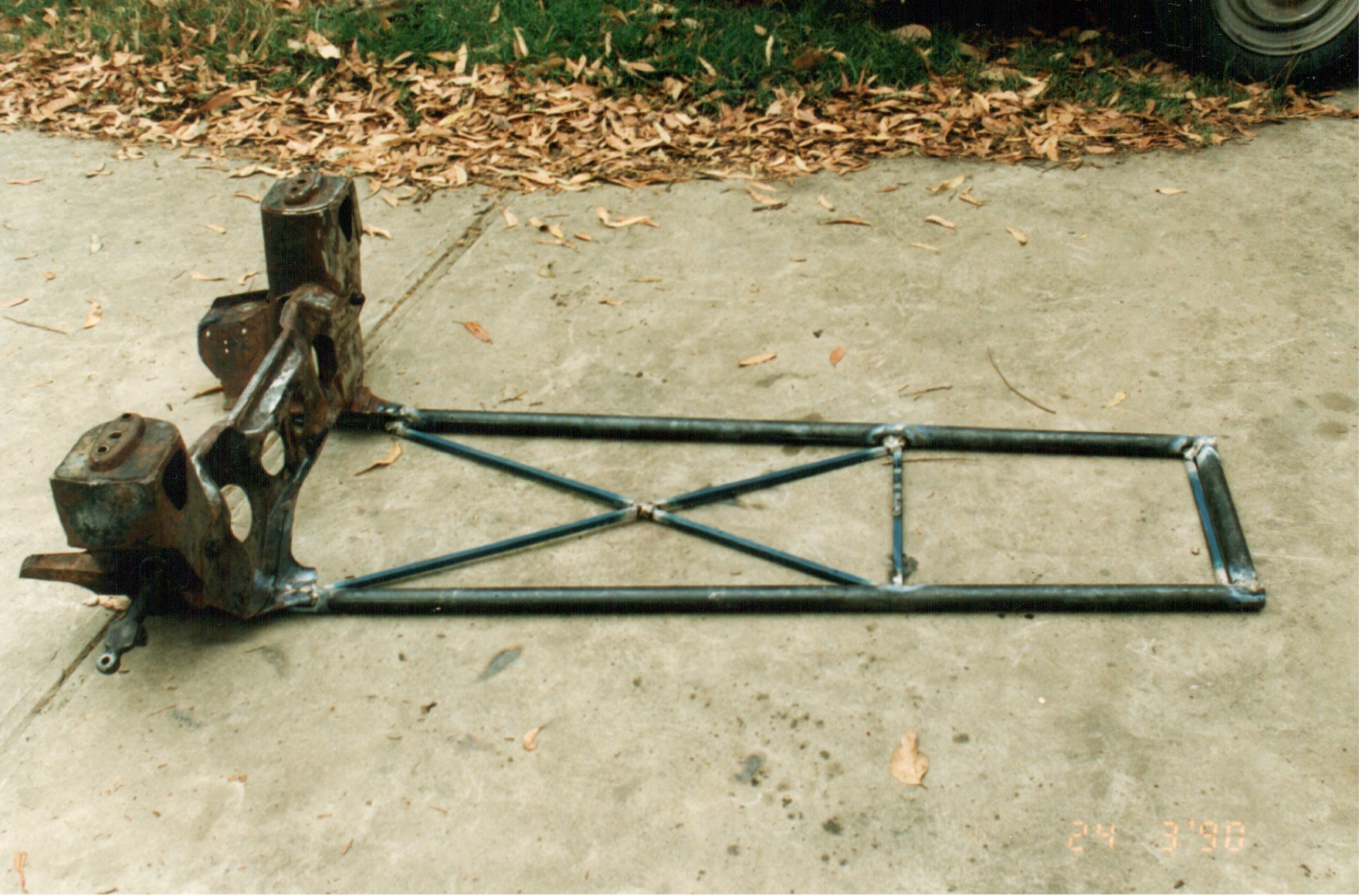

Short isn't it

CougarMR1 4

Week 2

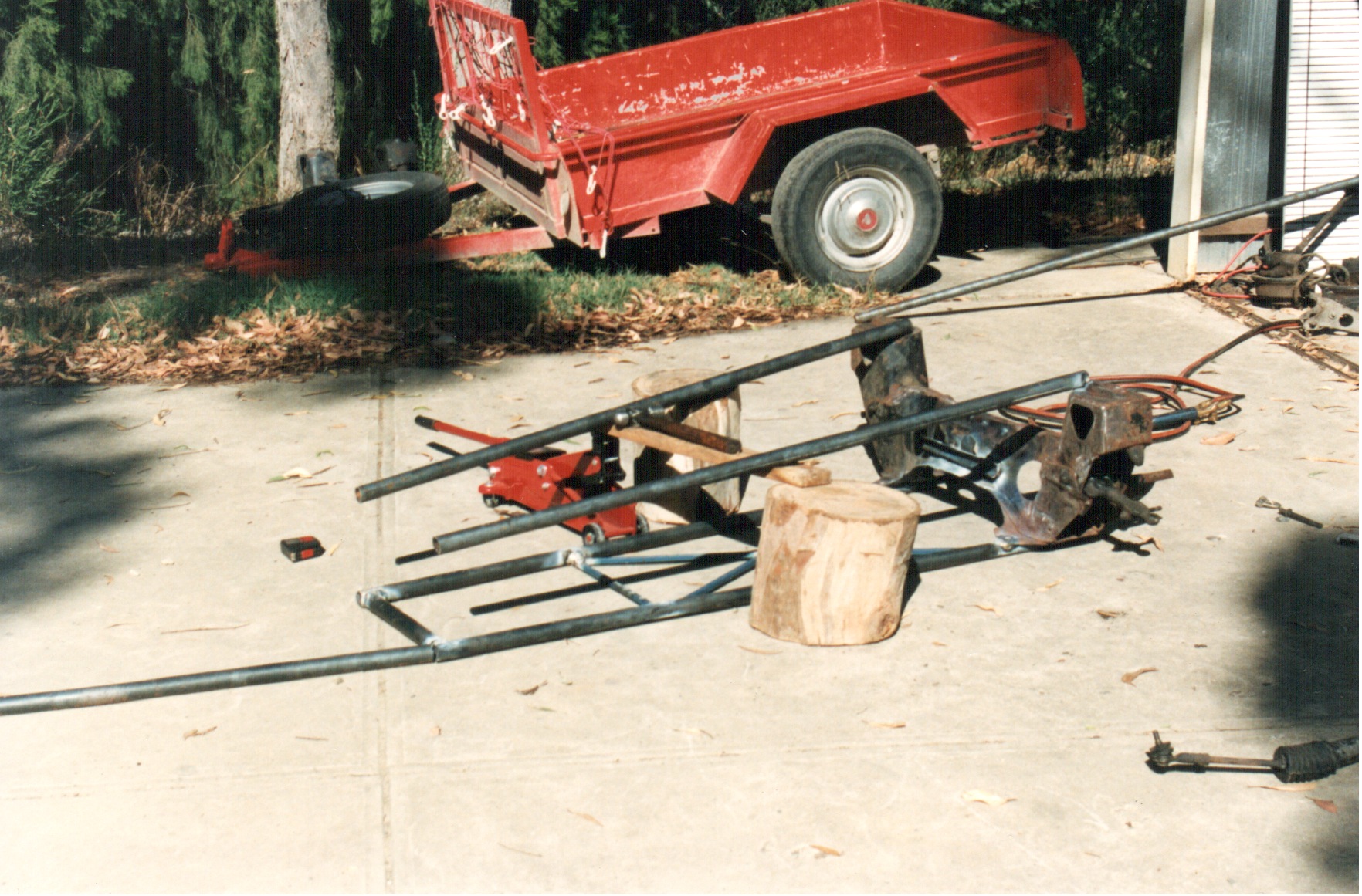

Then we create the top of the body work

CougarMR1 5

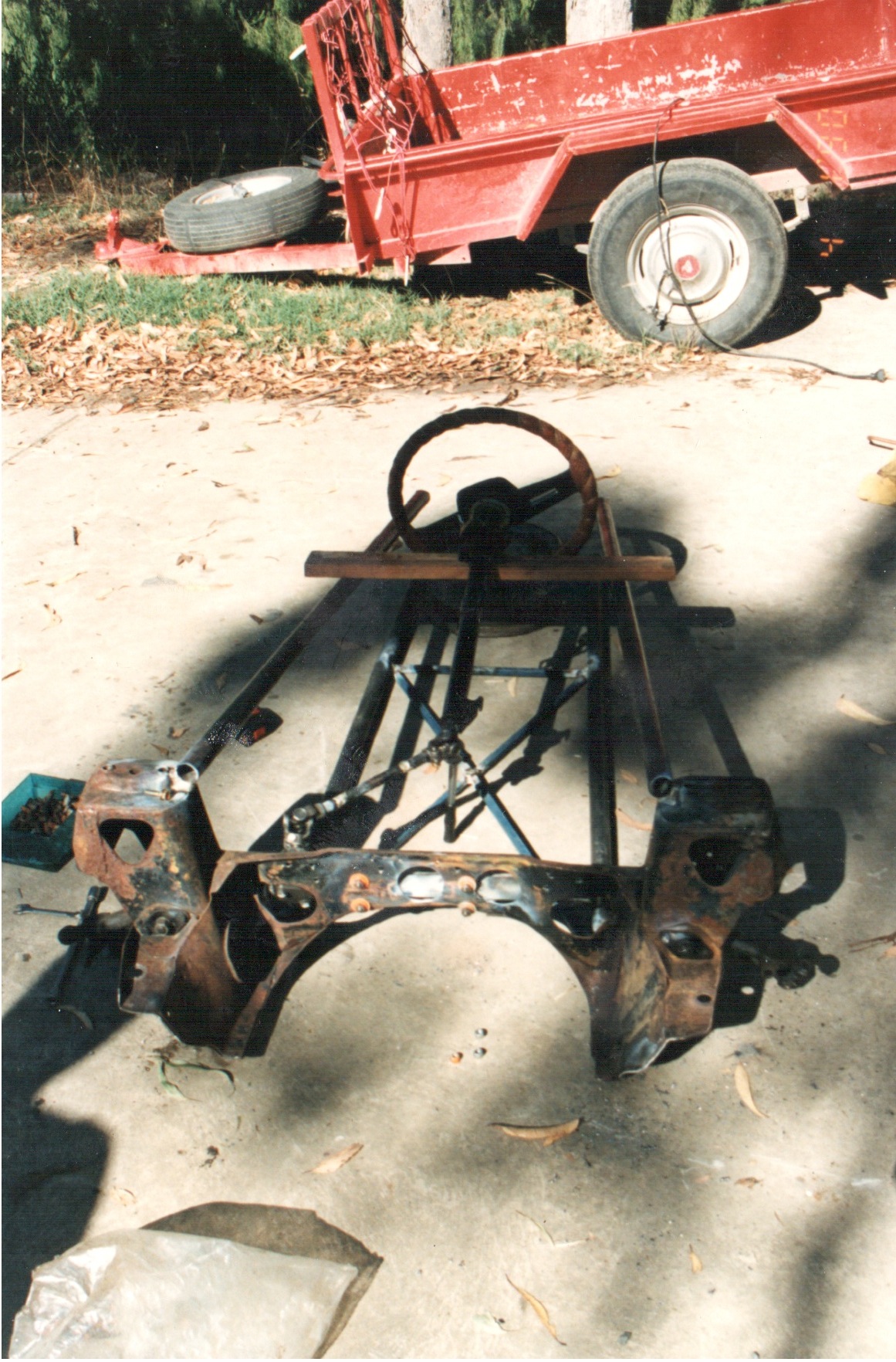

And set the width, by ensuring that the steering wheel fits inside

CougarMR1 6

Week 3

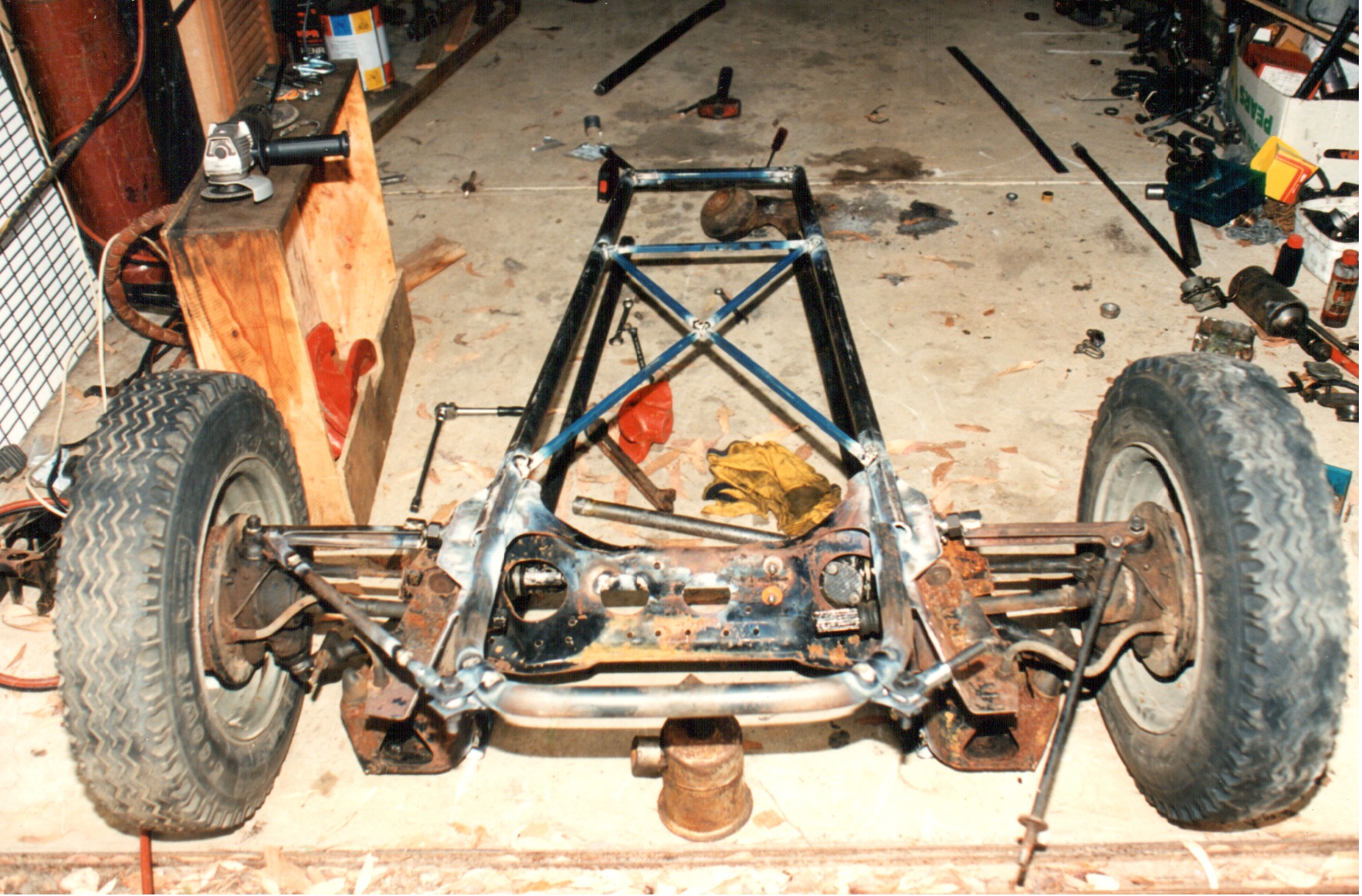

Now we need to create some suspension mounts

CougarMR1 7

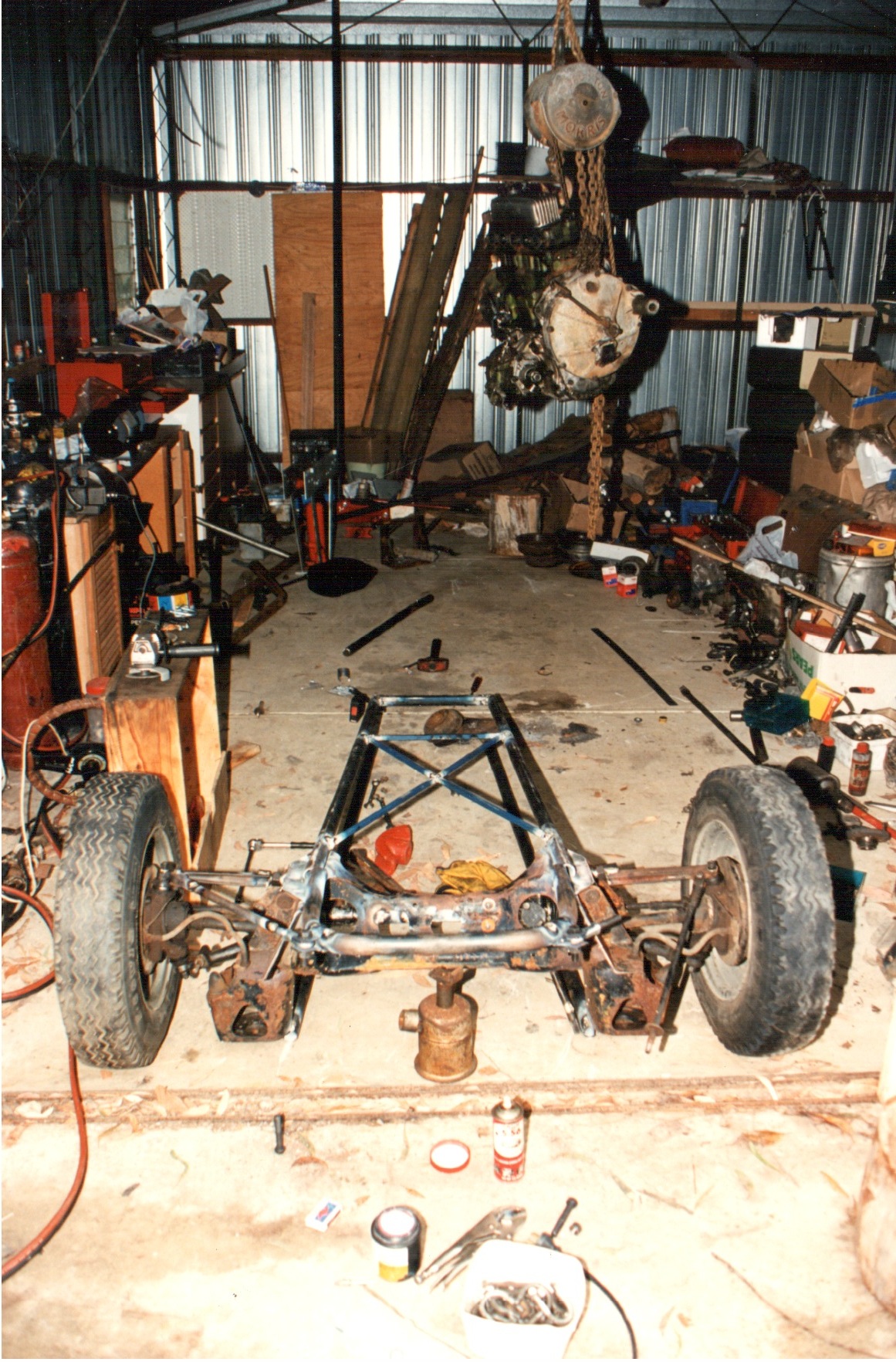

And yes it is upside down for this bit, and in the background you can see the engine

CougarMR1 8

Week 4

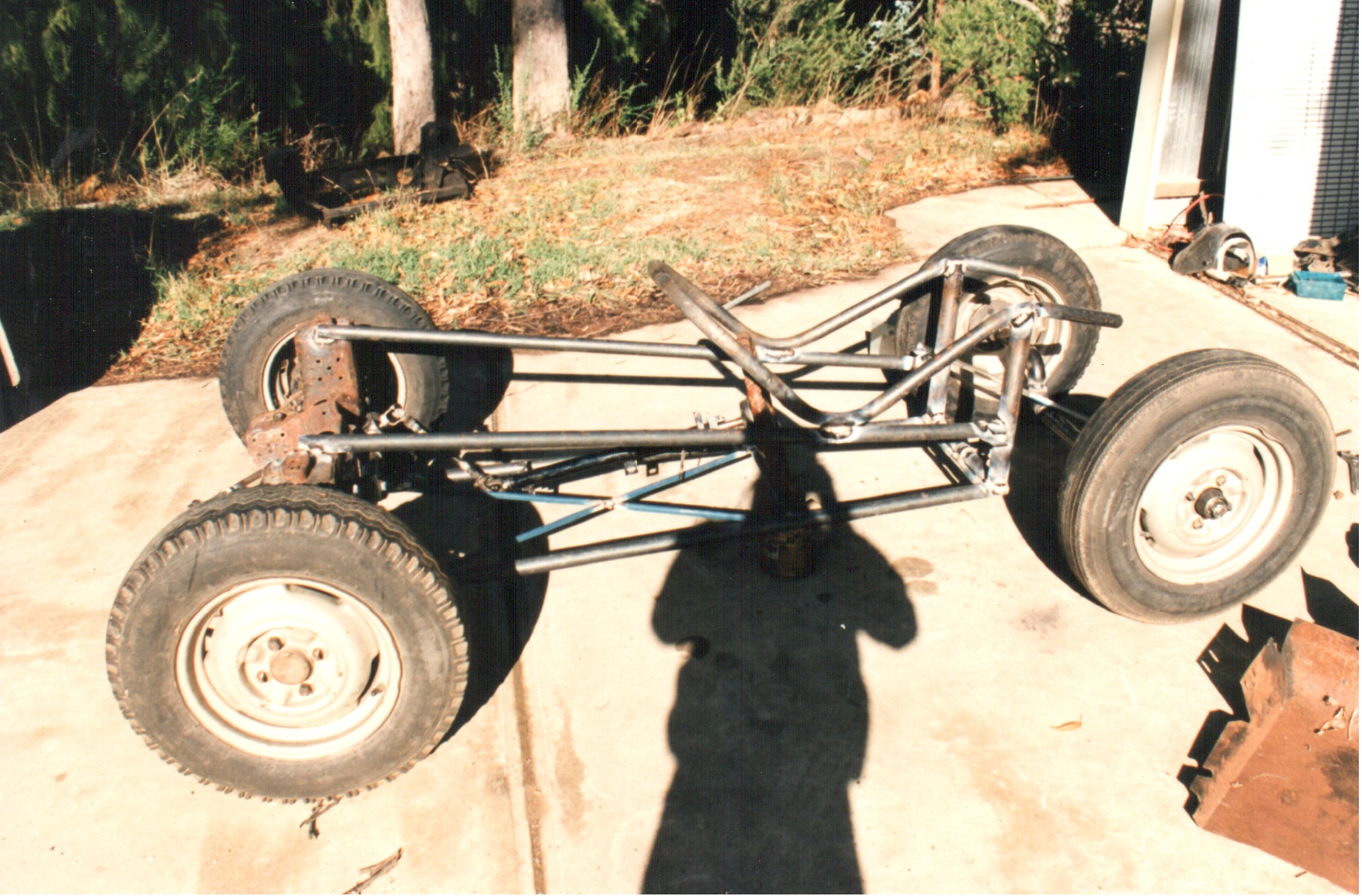

Once the rear axle is complete I had to work out what to do with the rear suspension

CougarMR1 9

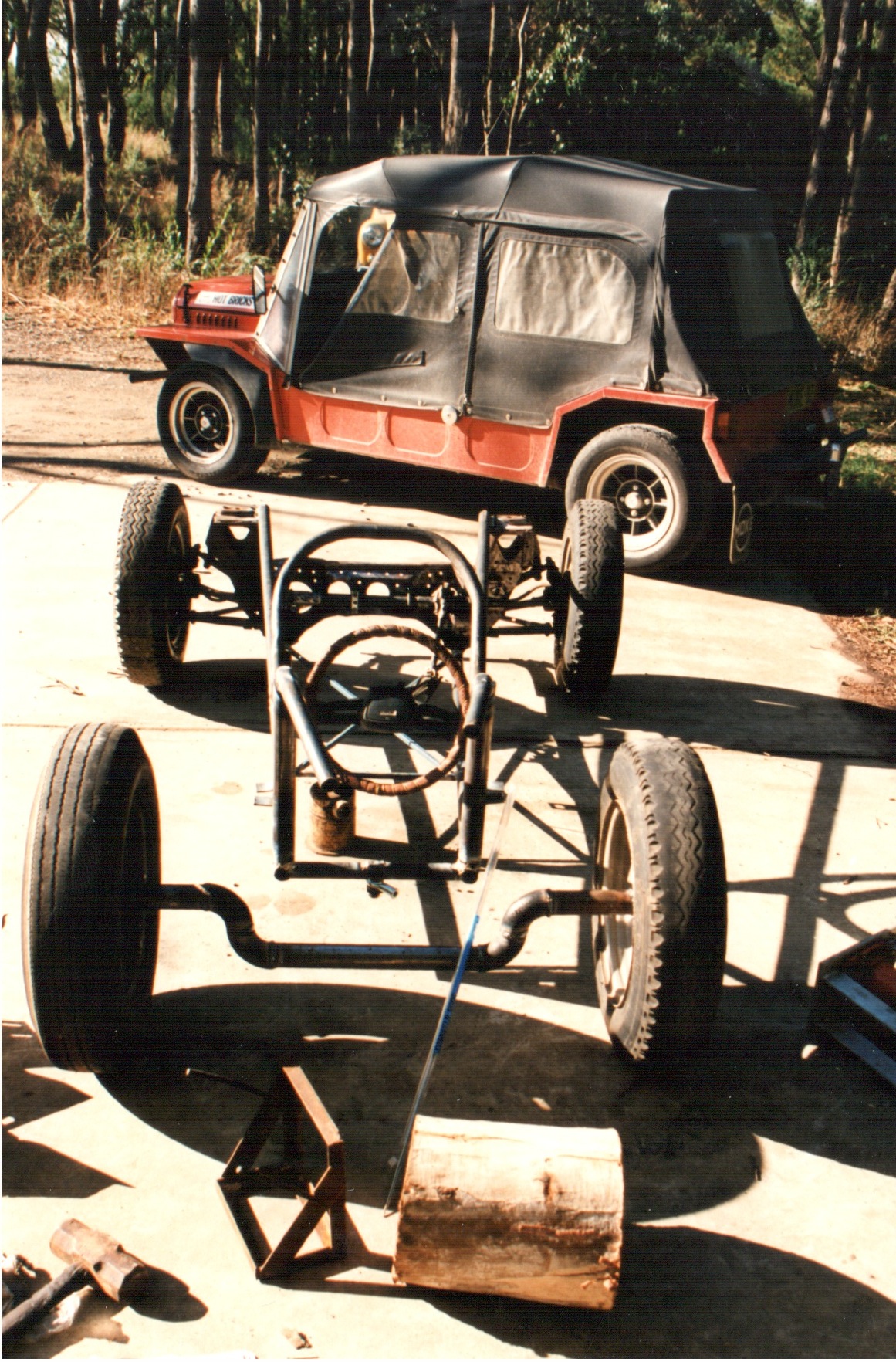

Drop down axle for a better roll angle. And the battery has to fit in there somewhere

CougarMR1 10

Week 5

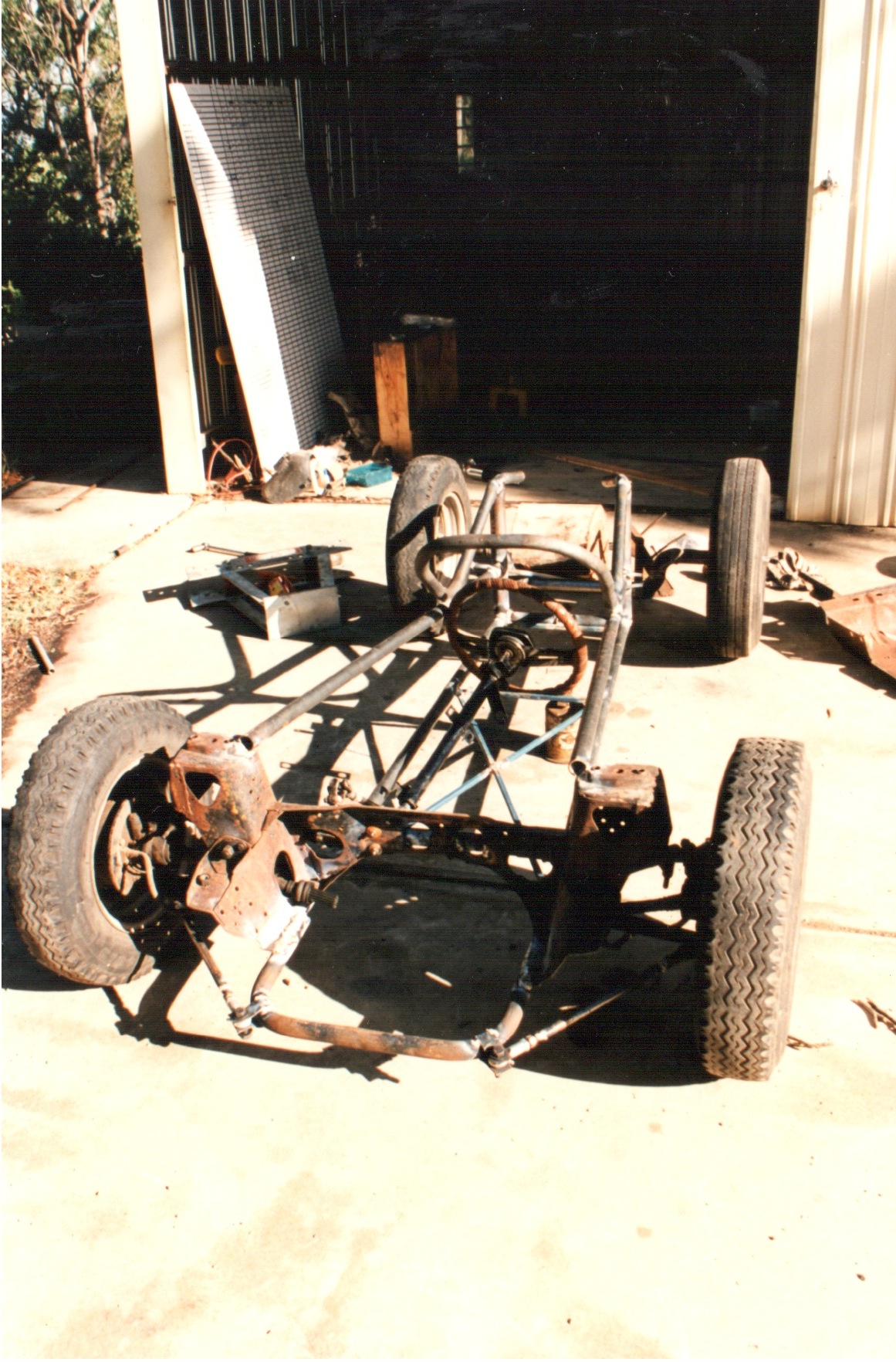

The steering is now on and the front suspension has been completed, but there is still a lot to do

CougarMR1 11

Week 6

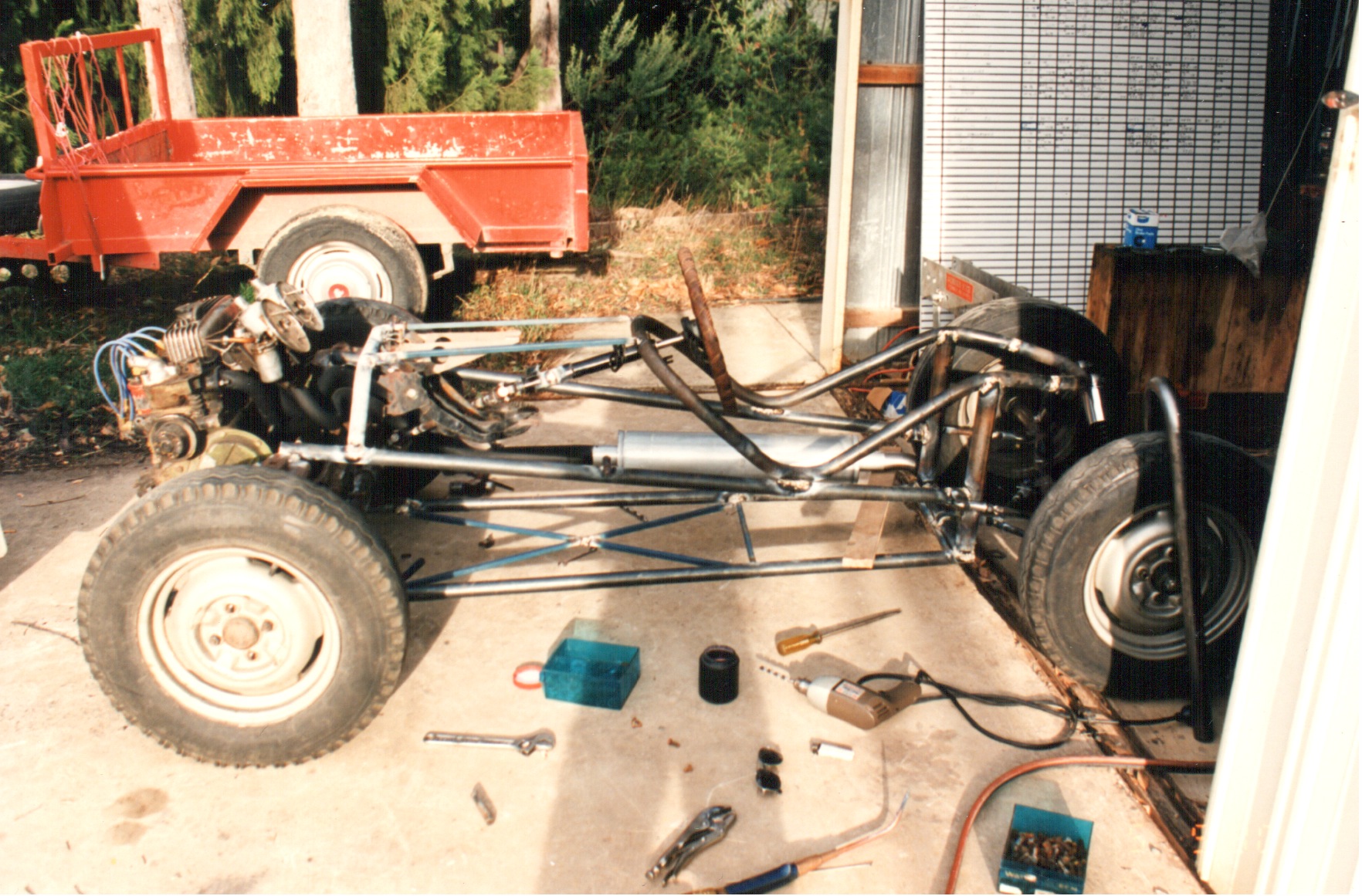

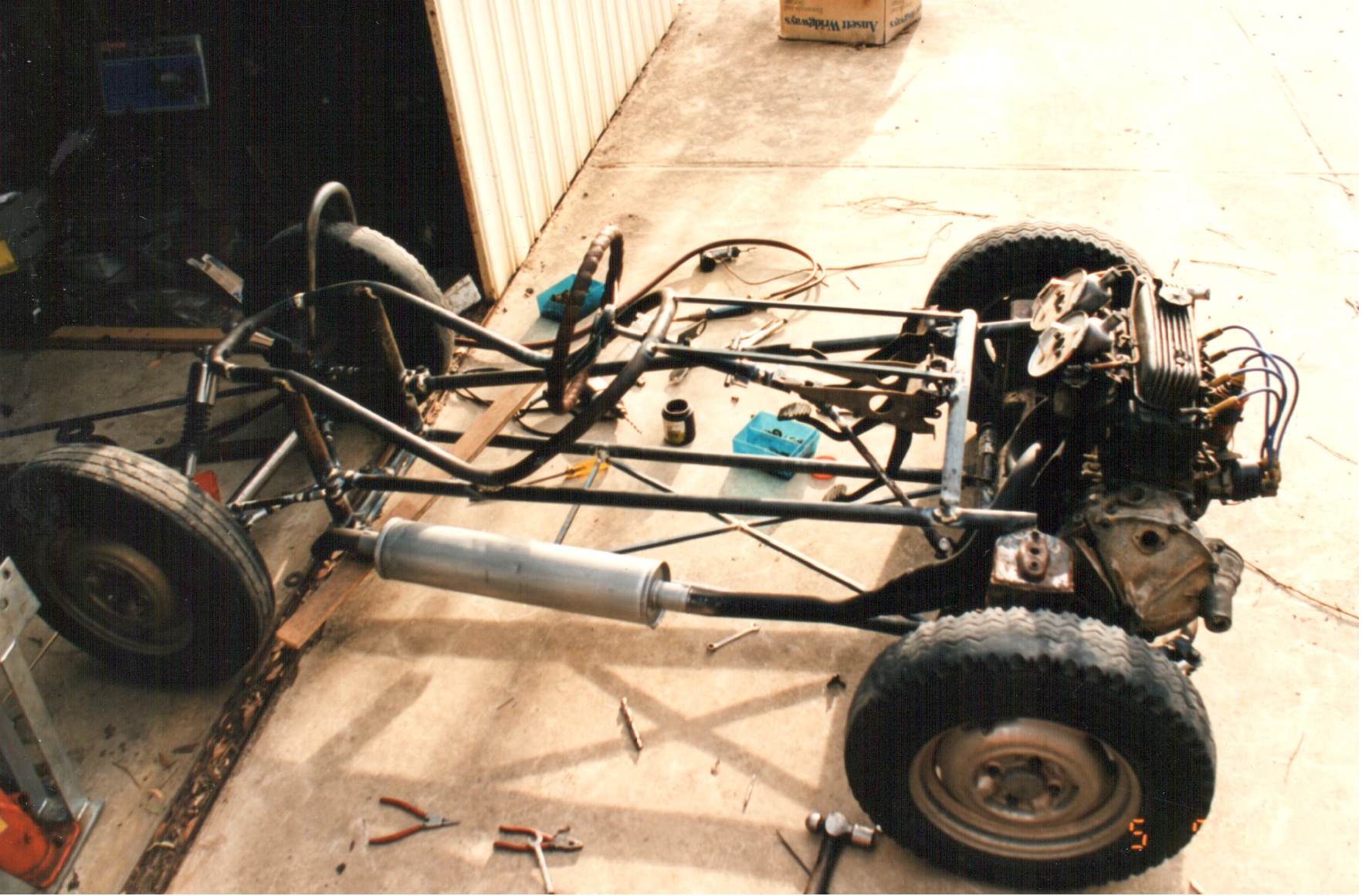

I have just fitted 1 of only 2 components I didn't make myself

The exhaust is a work of art going through the gap between the suspension and the steering column

CougarMR1 12

Week 7

The steering wheel is finaly mounted and the body is now starting to take shape

CougarMR1 13

Week 8

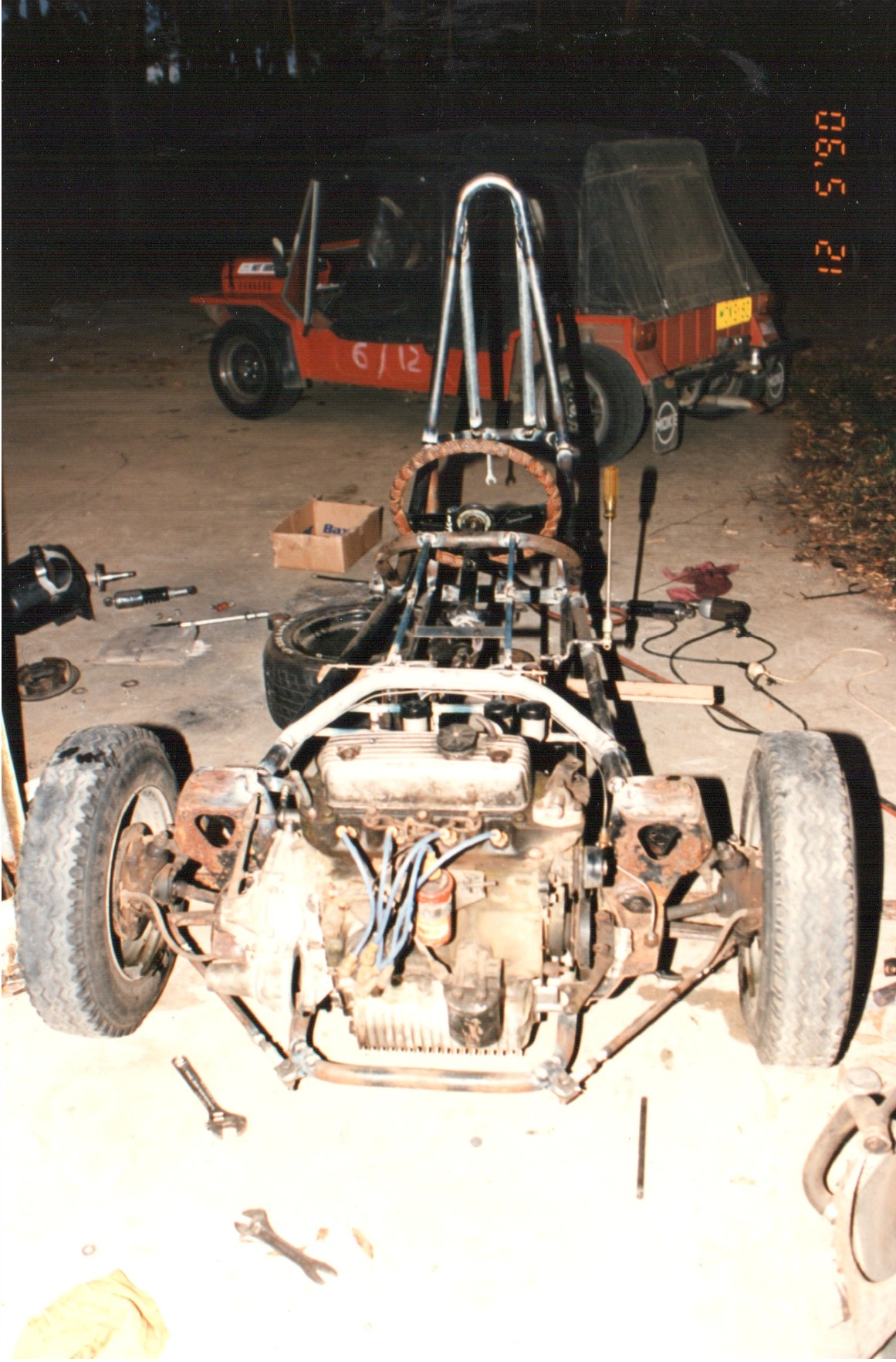

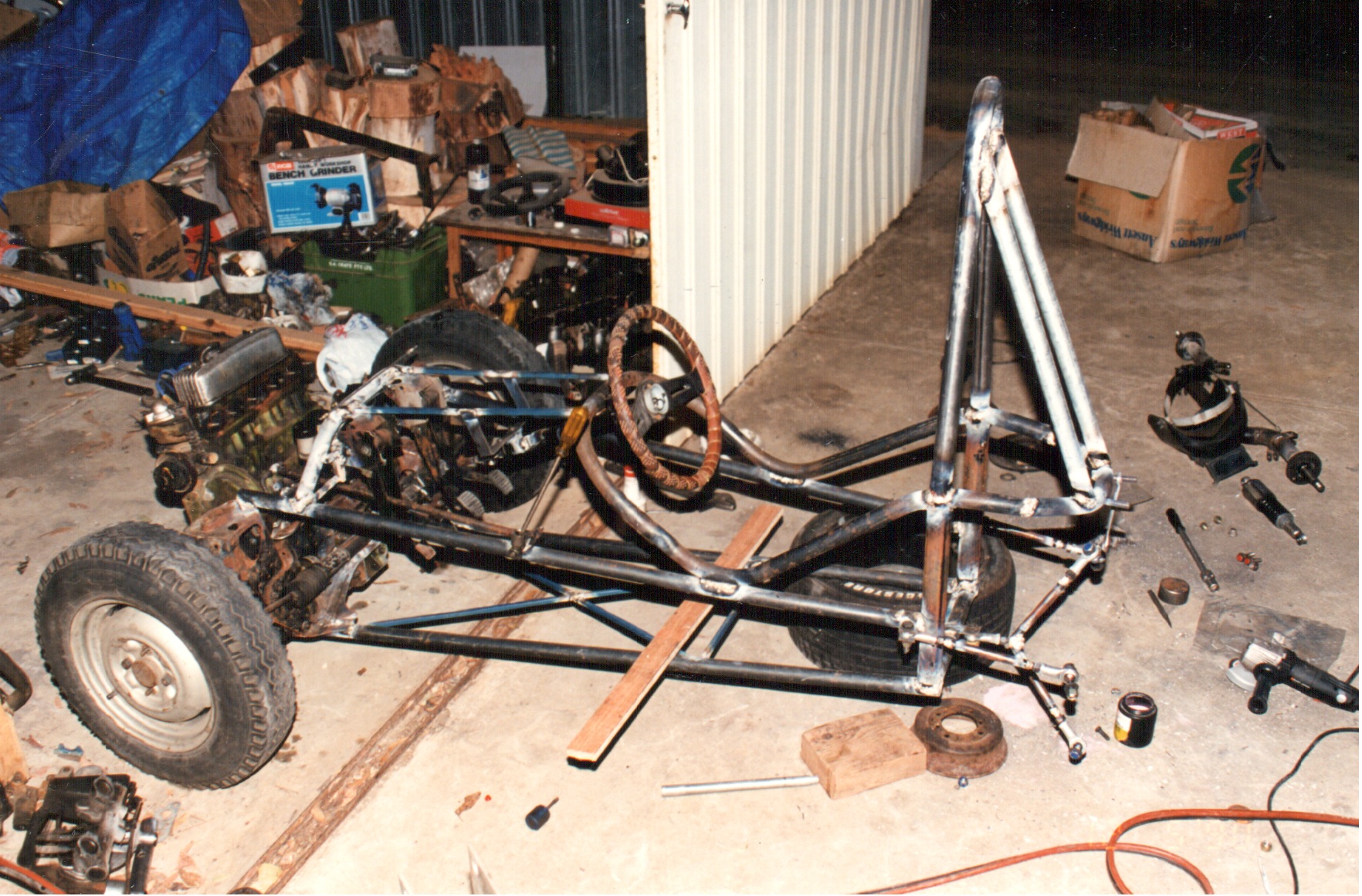

Some would say the most important bit, fitting the roll cage. And if you look closely you can see the gear change but it is just a screwdriver at this stage

CougarMR1 14

In order to get this ready for the first race, there were a lot of late nights

CougarMR1 15

Week 9

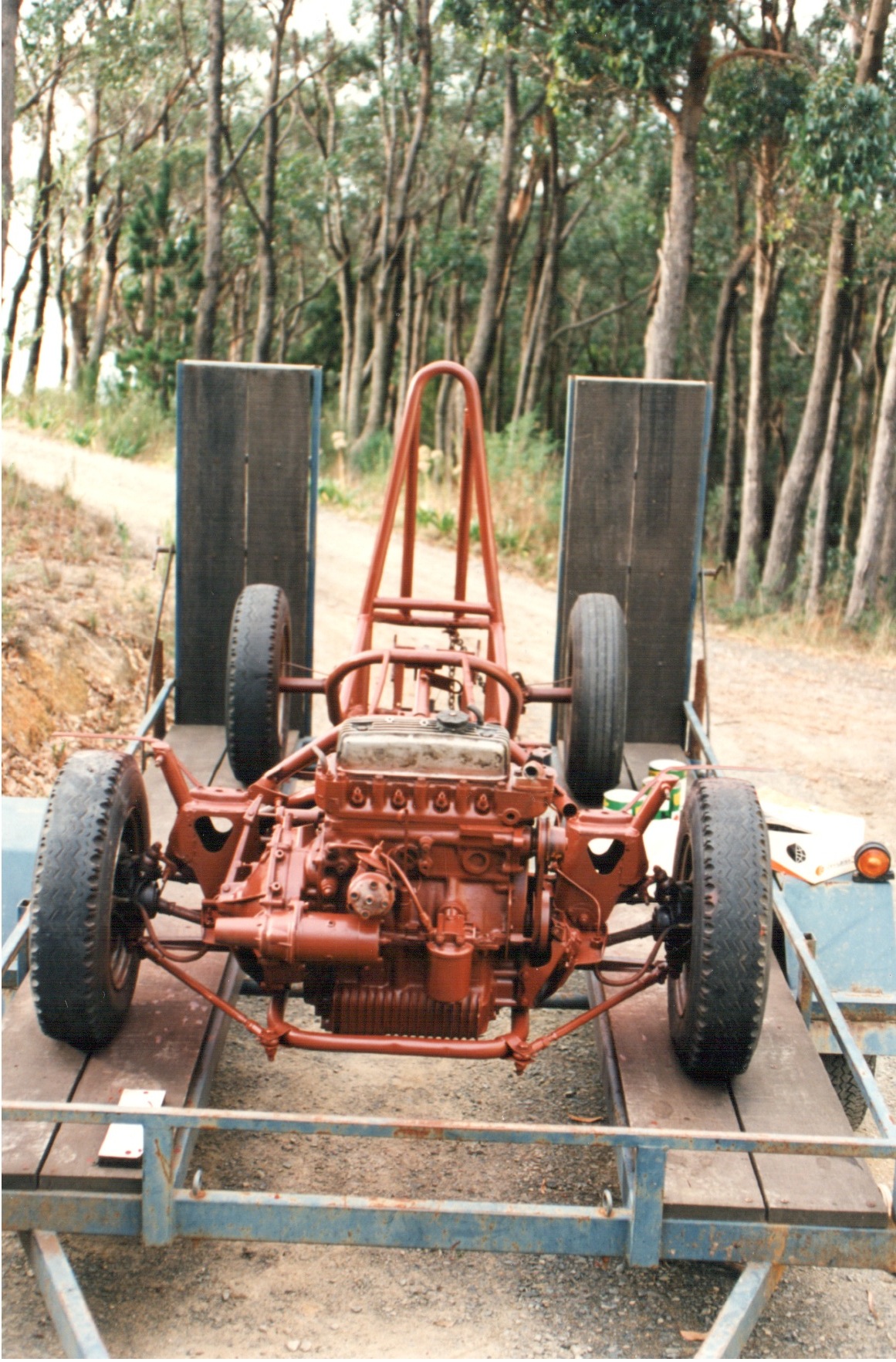

Finally a rolling chassis, next step is some undercoat

CougarMR1 16

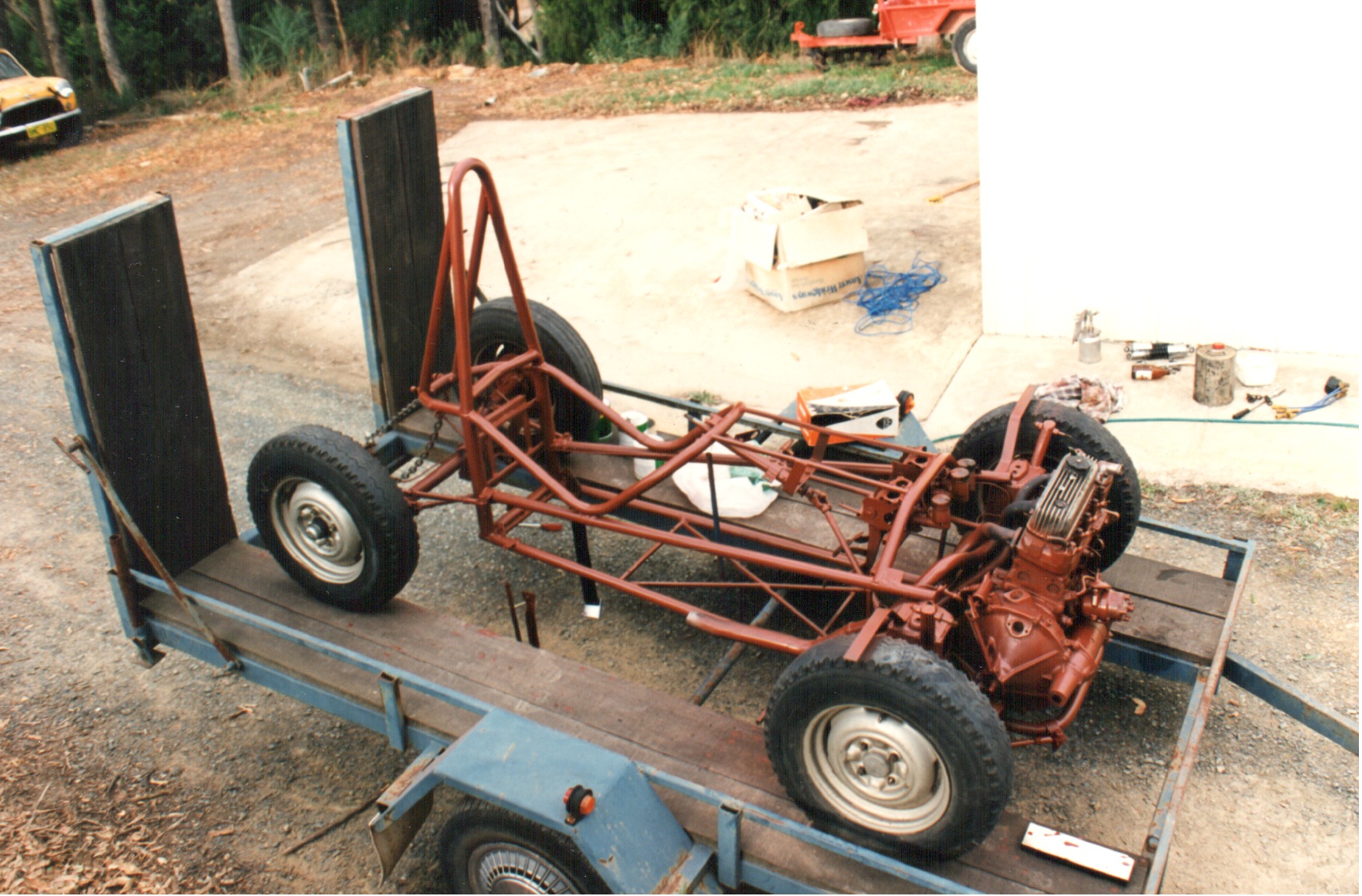

This is the first photo where you get a clear view of the pedals, and there are 4. Accelerator; Front Brake; Clutch; Rear Brake

CougarMR1 17

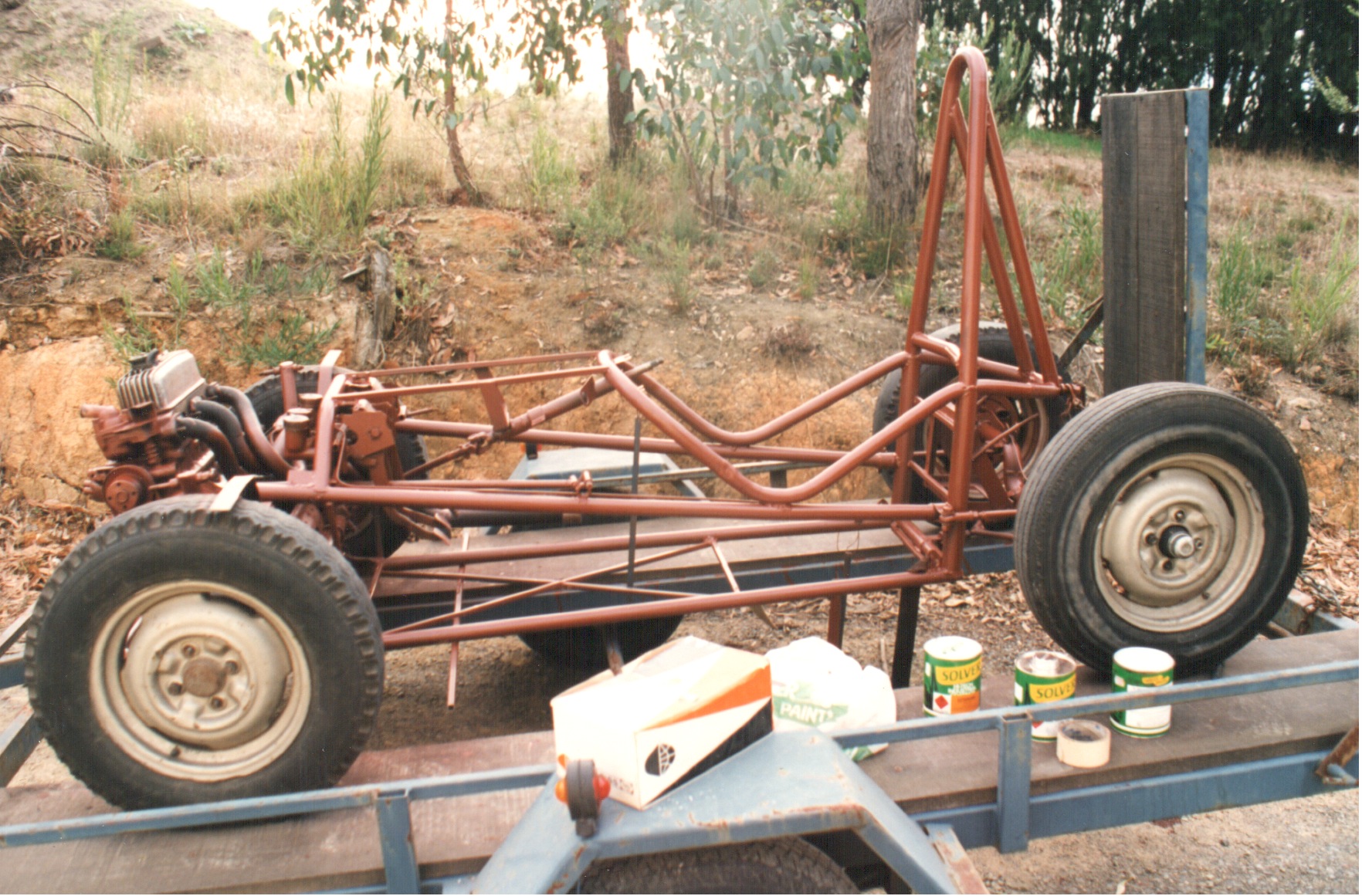

Ready for the top coat

CougarMR1 18

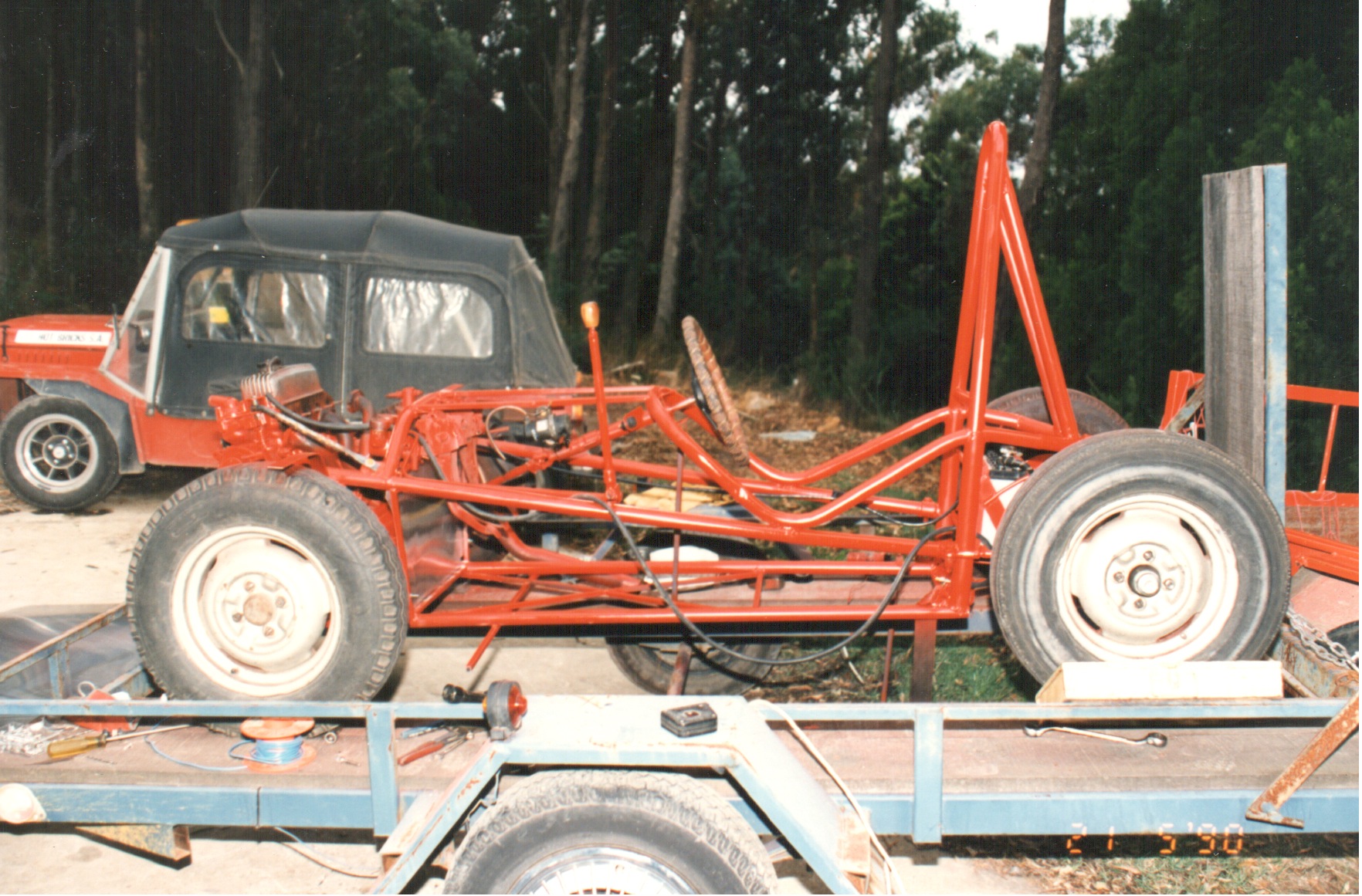

Bright Red, what other colour is there for a race car

CougarMR1 19

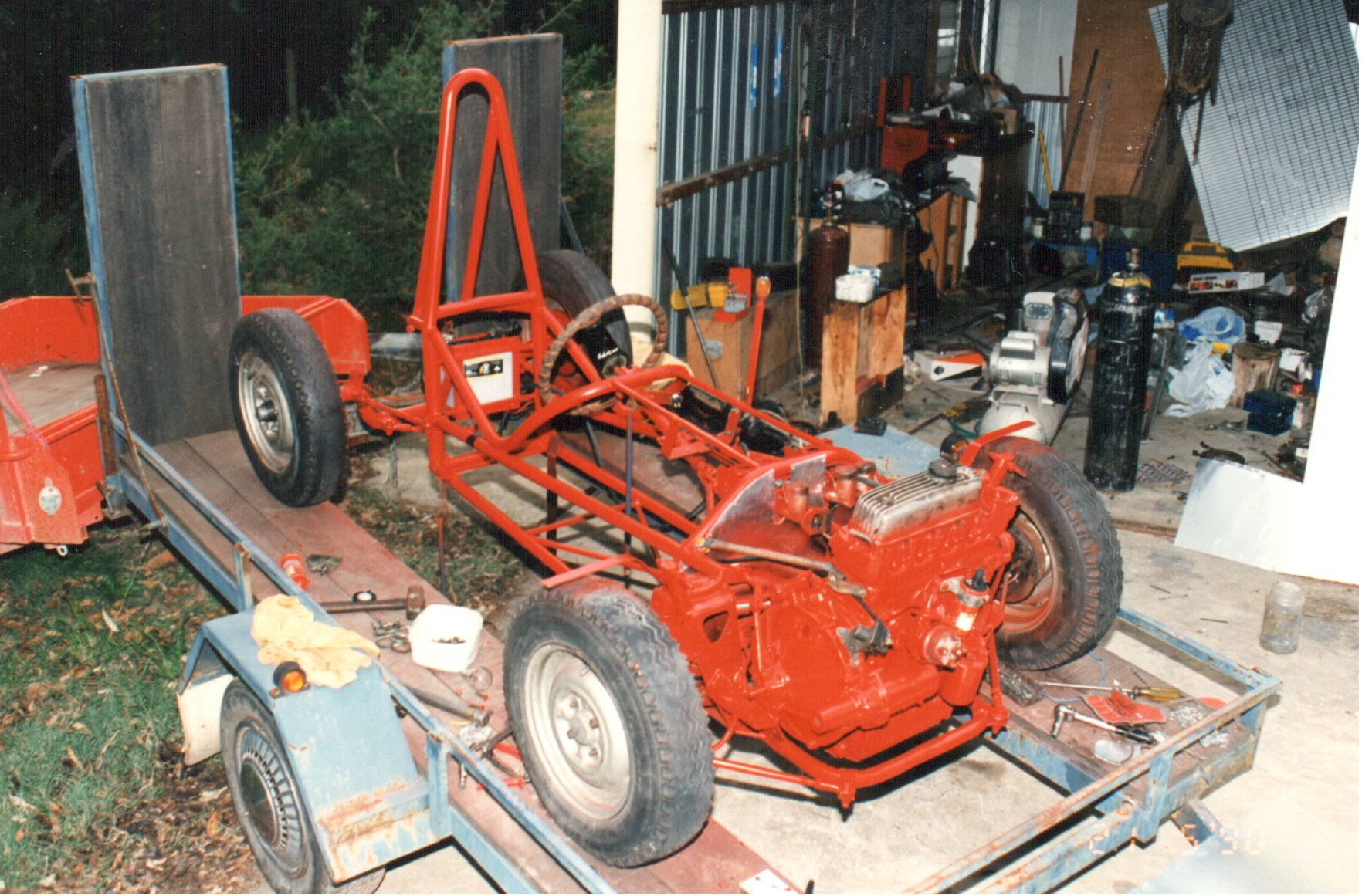

Another late night ahead as the wiring goes in. You can see the battery under the roll cage and the gear stick is now attached

CougarMR1 20

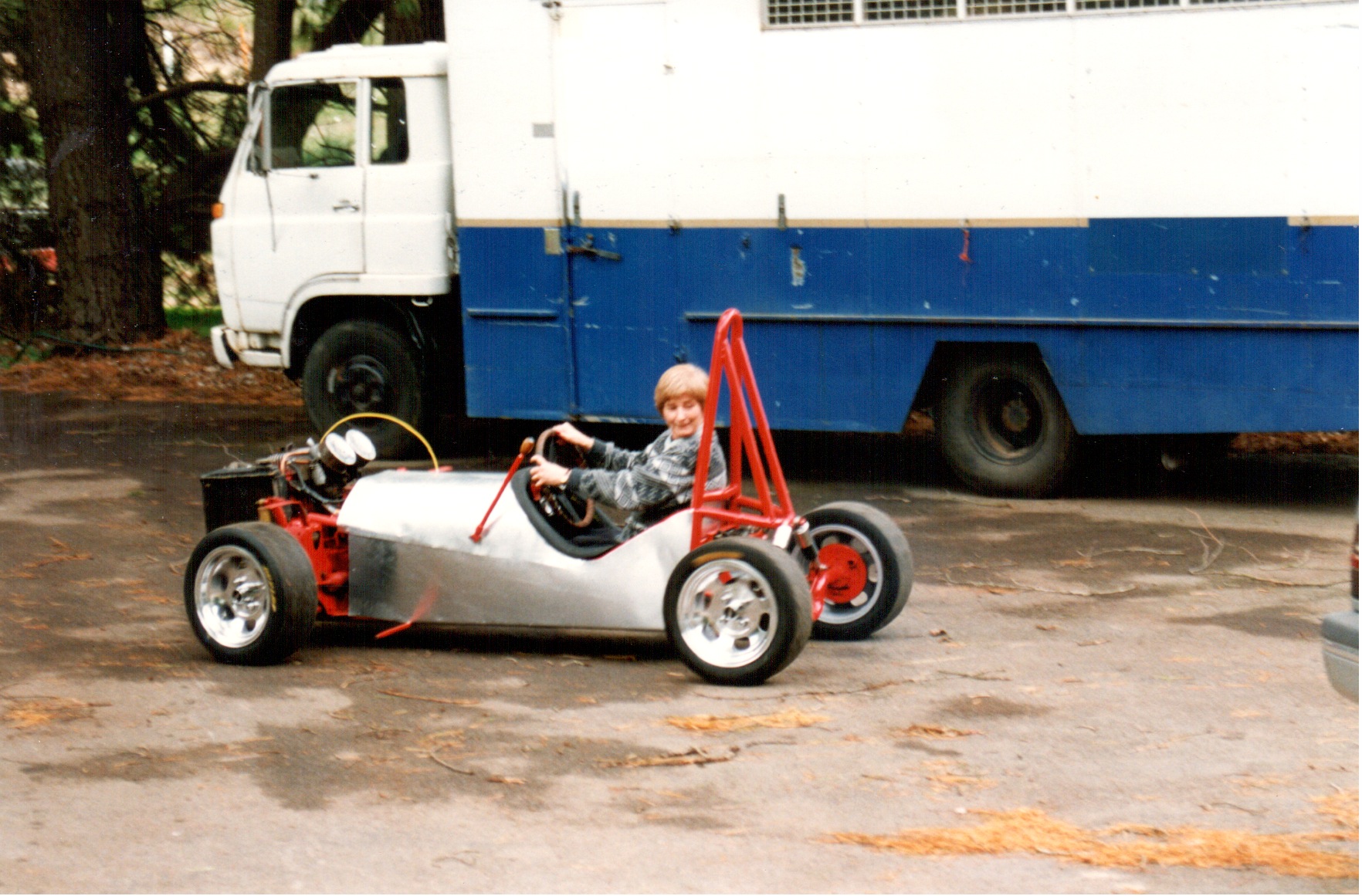

All done and ready to show off to my family

CougarMR1 21

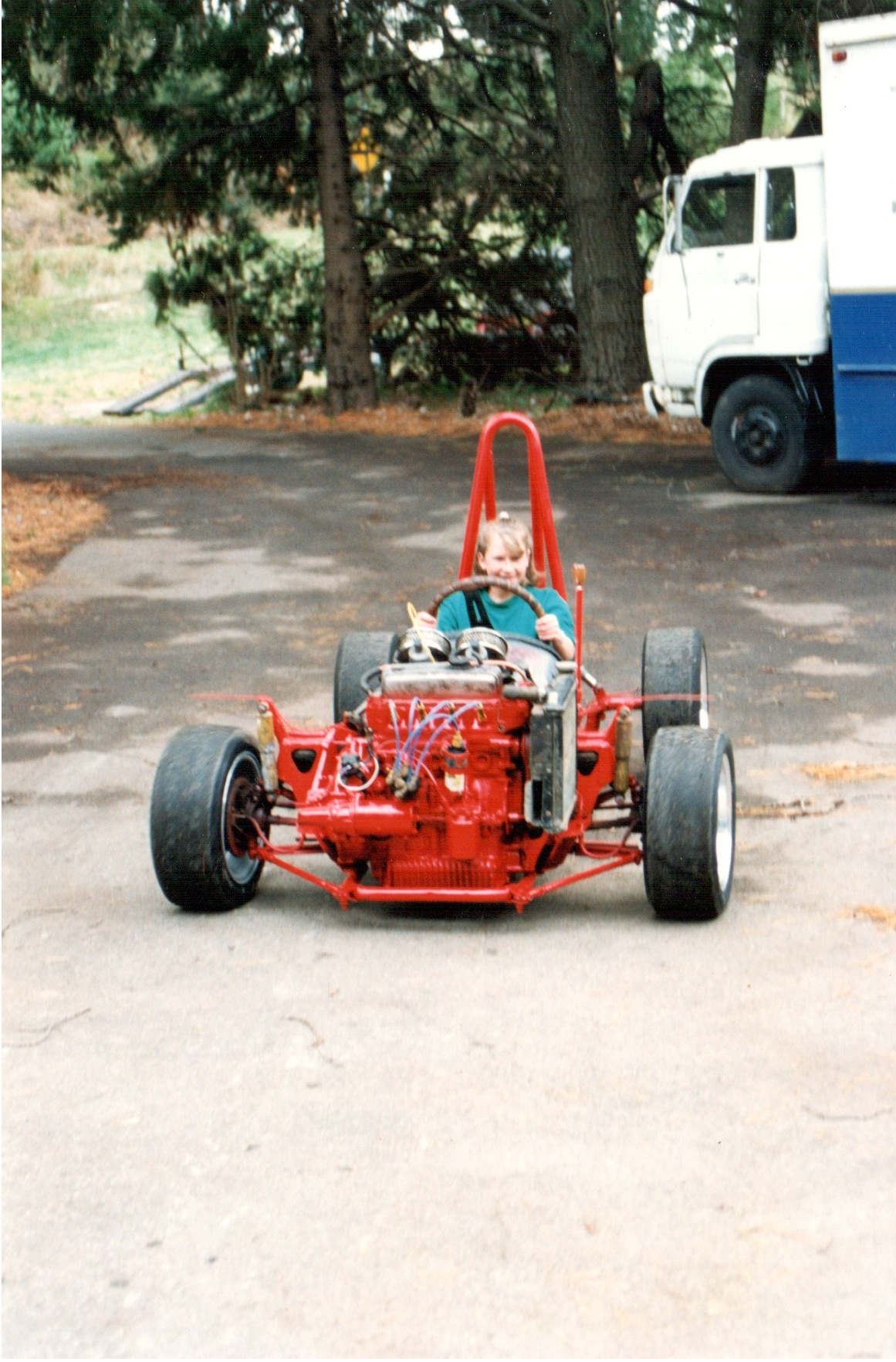

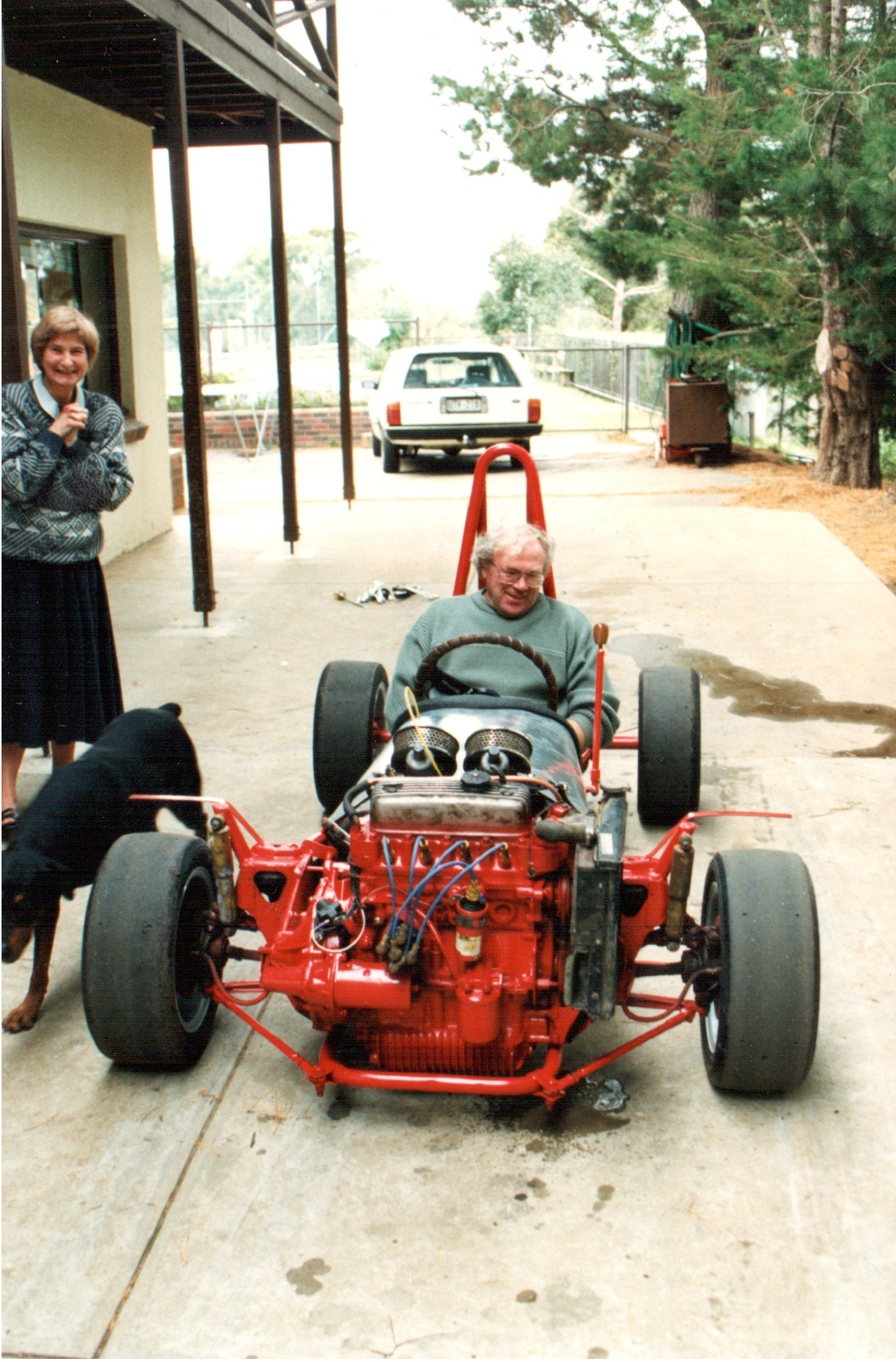

Mum and Dad's drive was plenty big enough for a quick spin

CougarMR1 22

I though I was ready for tomorrows race, but the water pump had other ideas. I know what I am doing tonight

CougarMR1 23

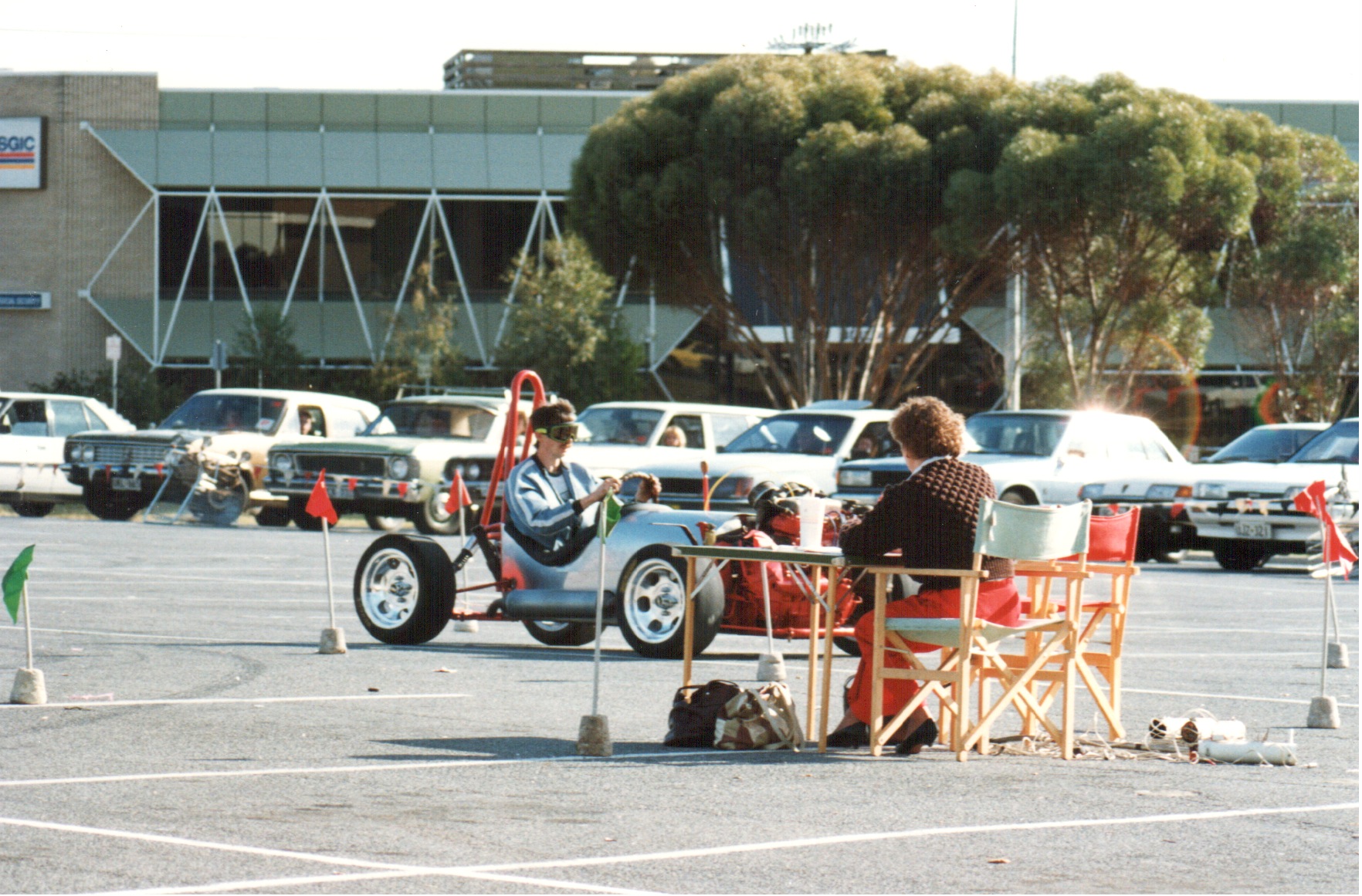

9 weeks from a rusty subframe in a field to 1st race

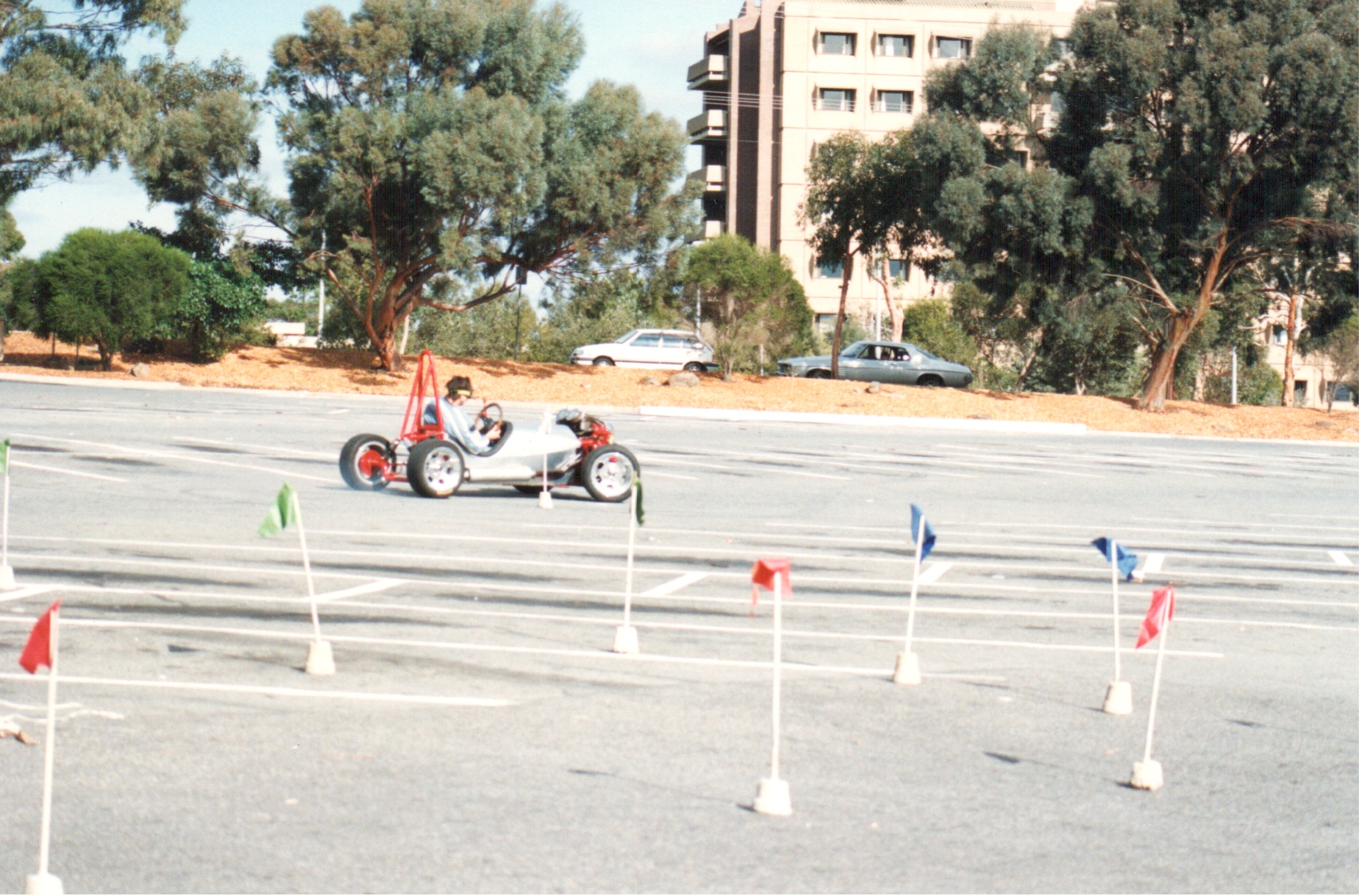

CougarMR1 24

Worth every minute and all nighter that it took to get it here
